English >  IN-LINE FILTER KUB series

IN-LINE FILTER KUB series

Feature Benefit
High performance Hollow Fiber Membrane The excellent Particle Removal Efficiency. Long Service Life High Flow Rate and Low Pressure Drop
Compact Design Small Space instalation in Plants and equipments.
Hydrophobic Removal of the drain
Characteristic
Our in-line filter product line-ups are using hydrophobic Polypropylene hollow fiber membrane for filter media.
high retention 0.01 μm filter media can remove bacteria, various particles, and water droplets from air.
Long filter life, compact design, and various product line-ups for required flow rate and connection method.

KUB series is compact filter using hollow fiber membrane for filtration of gas .
and it is in-line filter of an easy hollow fiber to install and can make very clean air.
This is high filtration accuracy and optimum filter to install to analytical equipment ,medical equipment, semiconductor equipment.


Specification
Pipe connection Caliber 1/4’ tube(In/Our)
Operation Temperature 5℃to 50℃
Maximum Operation Pressure 0.5MPa
Fluid Air and Nitrogen
Filter area 270c㎡
Pore size 0.003μm
Flow rate (at 0.3Mpa) 100L/min*
*Depends on our measurement conditions

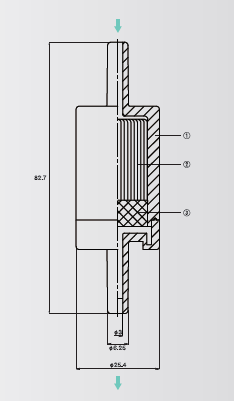

Dimensions

Application

Precision Measuring Instruments and Analitical Equipment,
Semiconductor Manufacturing Equipment
Printing/Painting Equipment
Medical/ Dental / Food Processing Equipment

Concrete Example
Foreign matter removing
 ・Foreign matter removal of compressor air
 ・Foreign matter removal of factory compress air piping
 ・Foreign matter removal of use point
 ・Foreign body removal in tube piping of transportation device suck pad
Removal of drop of water(drain)
 ・Drop of water removal of compressor air
Removal of bacteria in supply air
 ・Filter in piping of medical unit and dental unit
Protection of equipment
 ・Protection of instrument for analysis and precision instrument
Filtration of the gas for prodcut filling
 ・Filtration of the nitrogen gas for filling
